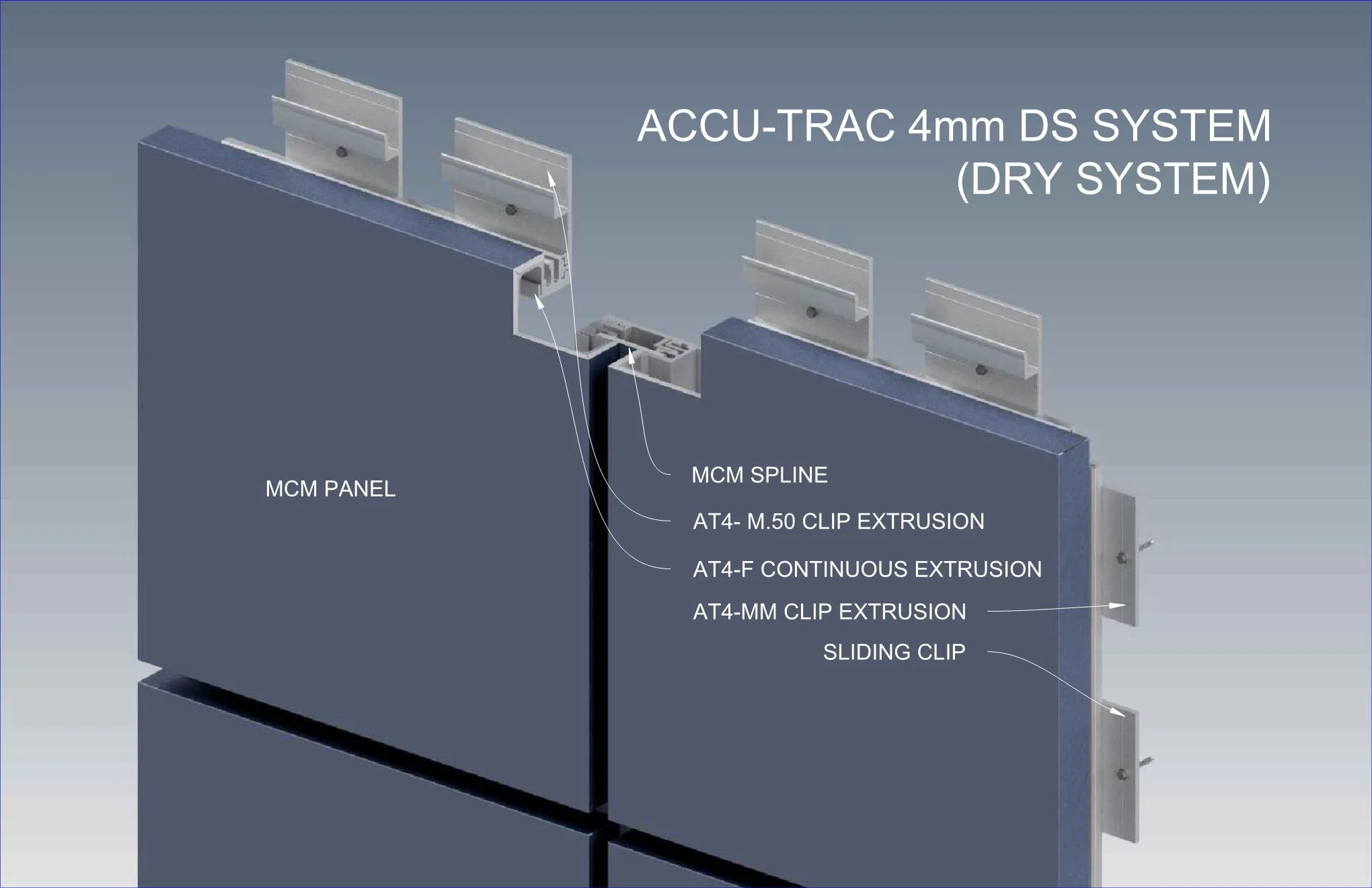

MCM 4MM DRY JOINT SYSTEM

Accu-Trac® DS (Pressure Equalized Rainscreen System)

  • Dry joint applications

  • Easy and quick installation

  • The patented revolutionary sliding clip technology allows for expansion and contraction in all four directions eliminating potential oil-canning or waviness

  • Sharp, crisp, precise vertical and horizontal joints or reveals

  • Variable width joint options

  • Variable color options with joints

  • Lower maintenance when compared to sealant dependant systems

  • AAMA 508-07 and 509-09 compliant

  • TAS 201, 202, 203, ASTM 1886 and ASTM 1996 Compliant

  • Florida Product Approval FL15337.3

NEED A QUOTE?

Downloadable Resources

File

Type

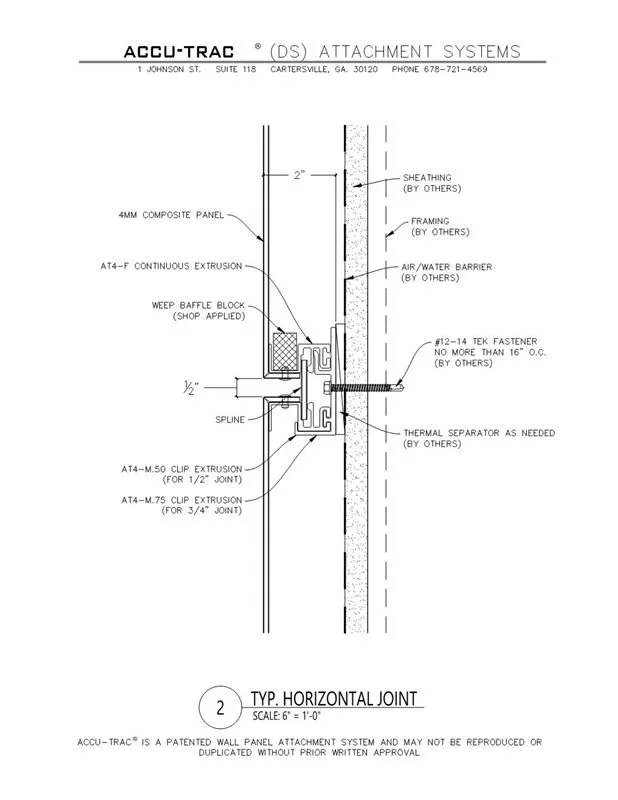

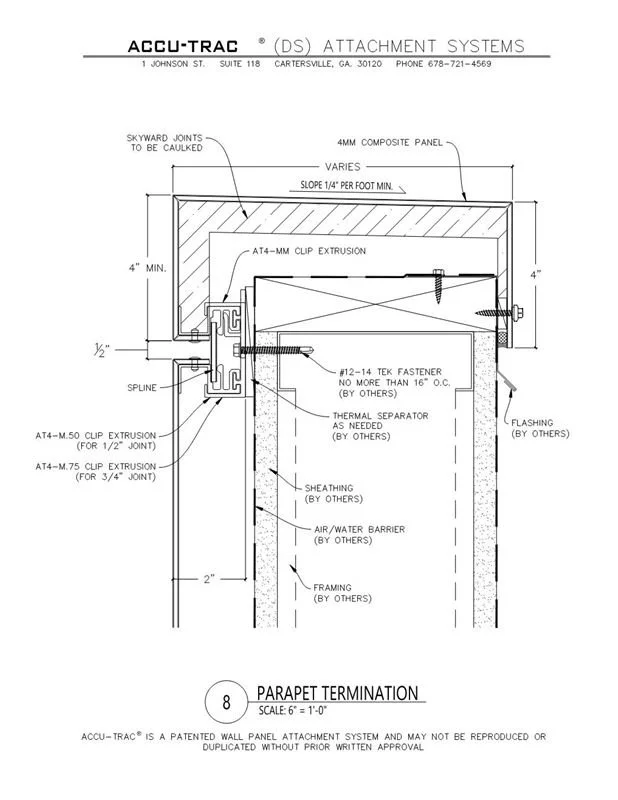

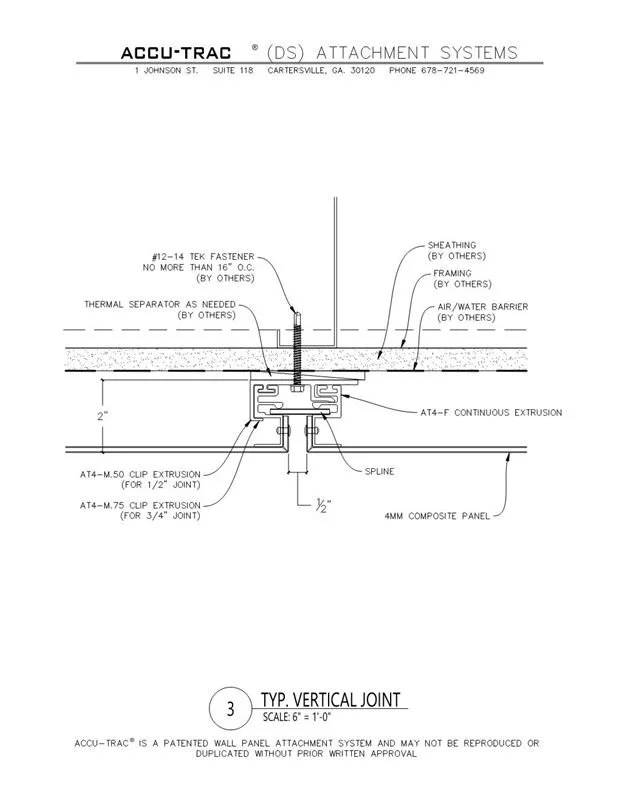

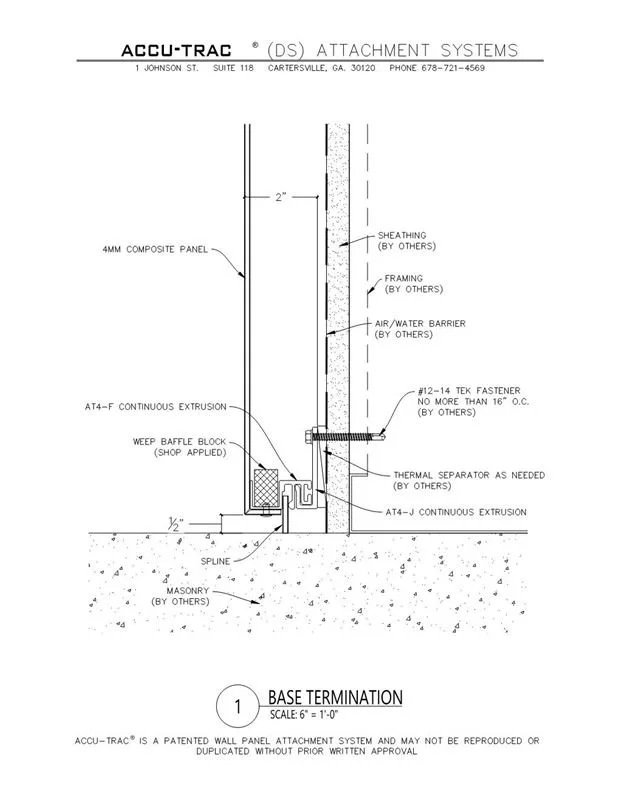

Accu-Trac DS (Dry) System Details

Drawings

Accu-Trac Corporate Patent

Product Patent

Accu-Trac DS Specification

Specifications

Florida Product Approval FL15337.3

Test Documents

Accu-Trac DS System AAMA 508 Test Reports

Test Documents

Accu-Trac DS System AAMA 509-09 Test Reports

Test Documents
