Perforated Materials

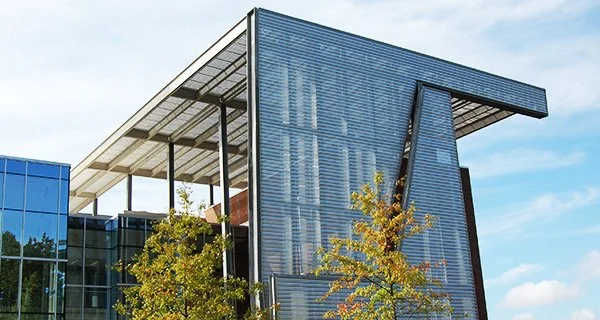

Perforated metal panels offer unlimited flexibility and extensive design variations. Architecturally, they can be used for decorative applications, signage, panel infills, ornamental contrast, ceilings, walls, grills, dividers, acoustical surfaces, and more.
NovaTech offers numerous hole size and placement combinations for perforated metal panels. While standard round holes are the most economical, custom shapes and variations are available at an additional cost and with design limitations.
An aluminum substrate is recommended for all exterior perforated applications due to its inherent corrosion-resistant properties.
Six Standard Patterns Available
(Custom Patterns Including Images Available)
Pattern
Type
A13: 1/8” holes, 3/16″ staggered centers, 40% open area
A15: 1/8” holes, ¼” staggered centers, 23% open area
A23: 1/4″ holes, ½” staggered centers, 23% open area
A24: 3/8” holes, ½” staggered centers, 51% open area
A19: 3/16″ holes, 5/16″ staggered centers, 33% open area
A25: 3/8” holes, 9/16″ staggered centers, 40% open area
