3MM Aluminum Plate Dry Joint System

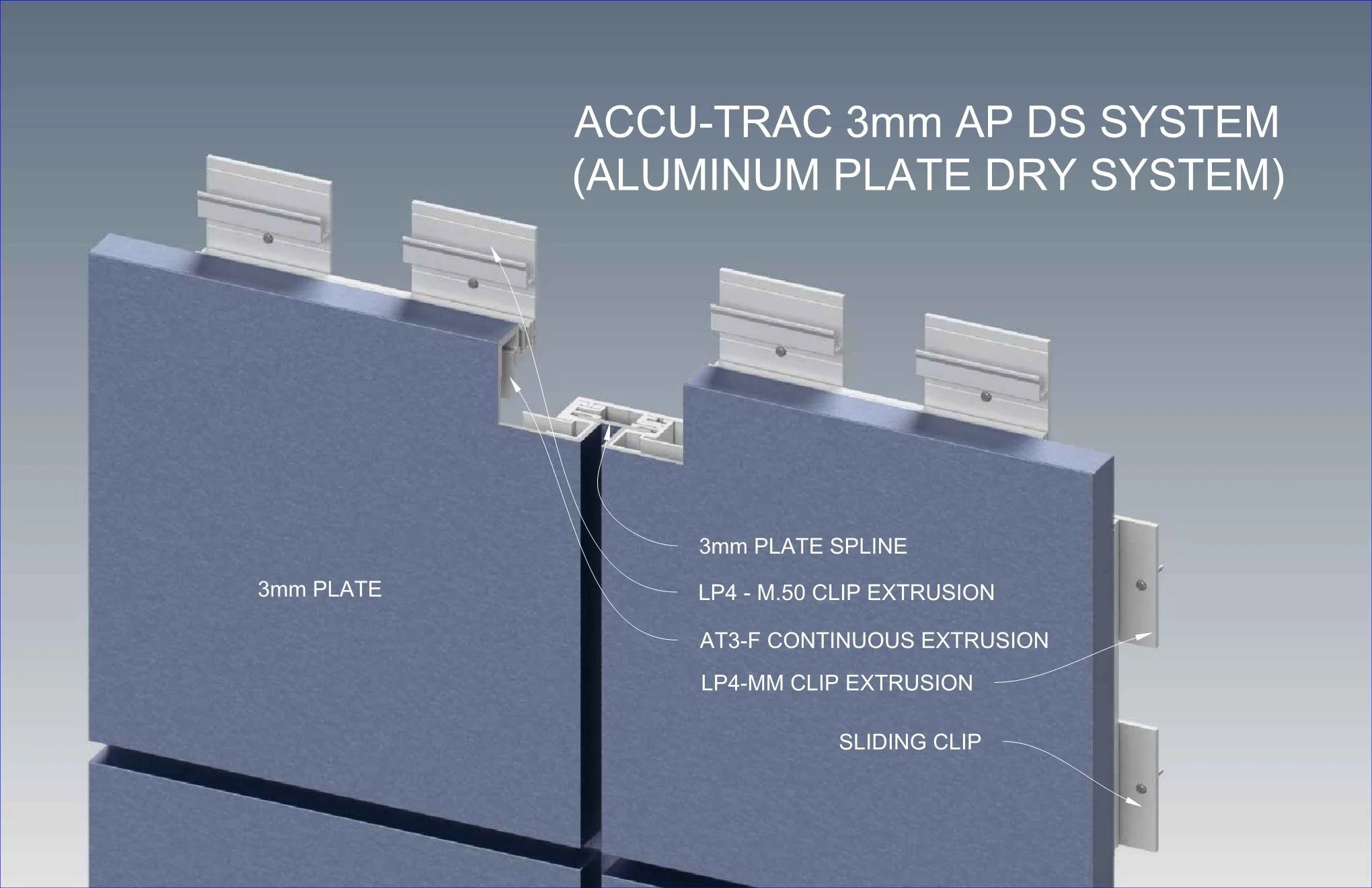

Accu-Trac® AP DS (Aluminum Plate Dry Seal Rear Ventilated Joinery Systems)

We offer a superior aluminum plate system that meets all of the high levels of performance that our MCM systems provide with a solid aluminum attachment system. In cases where MCM is not applicable, our plate is a perfect choice! The unique design of the Accu-Trac system allows it to be interchangeable with either MCM, aluminum plate or any combination of the two materials.

  • Solid Aluminum 3MM Plate

  • Pre-painted coil coat finish providing superior performance

  • Superior Flatness

  • Lab Tested Performance

  • Surprisingly Affordable

  • Wide variety of color options from solid colors, woodgrains and natural metals

  • Meets TAS 201, TAS 202, TAS 203, ASTM 1886, ASTM 1996, ASTM 330, 283, 331, CAN/ULC S135, CAN/ULC S114 Code Requirements

  • LEED Certified

Downloadable Resources

File

Type

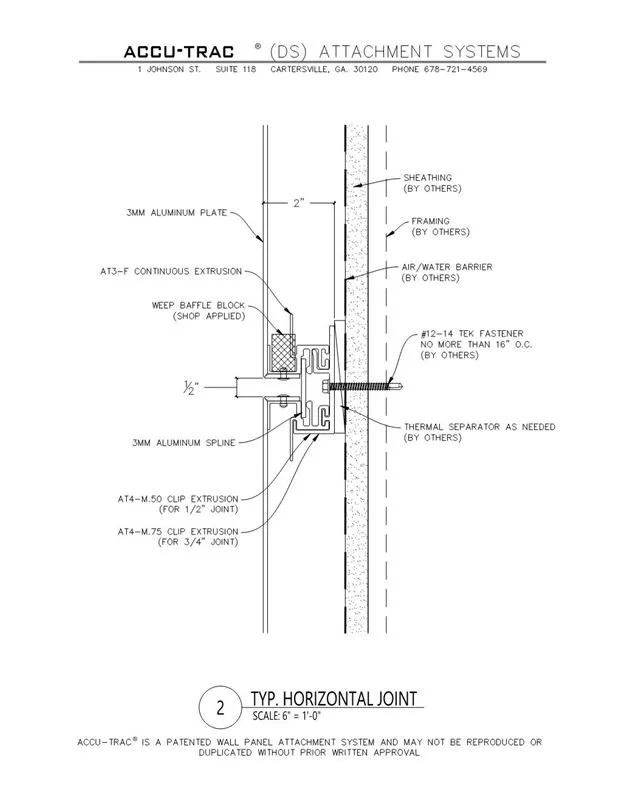

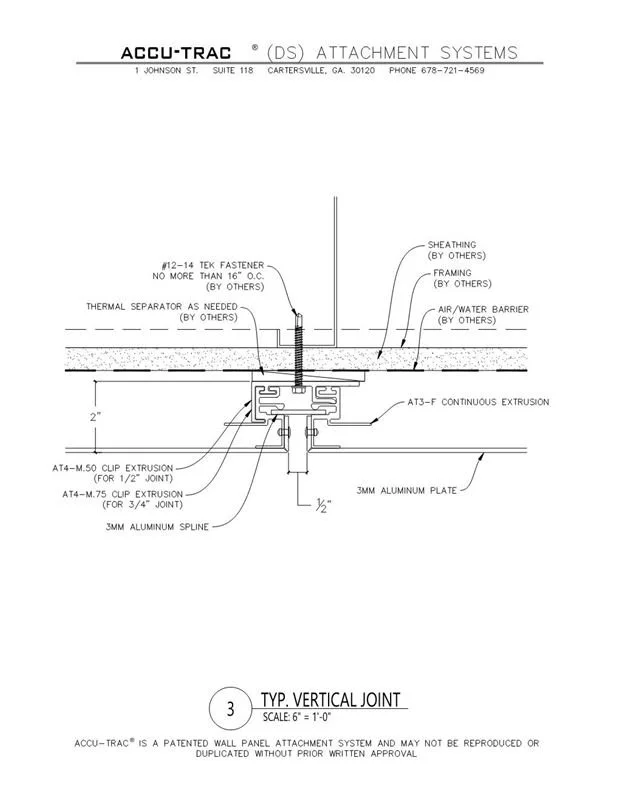

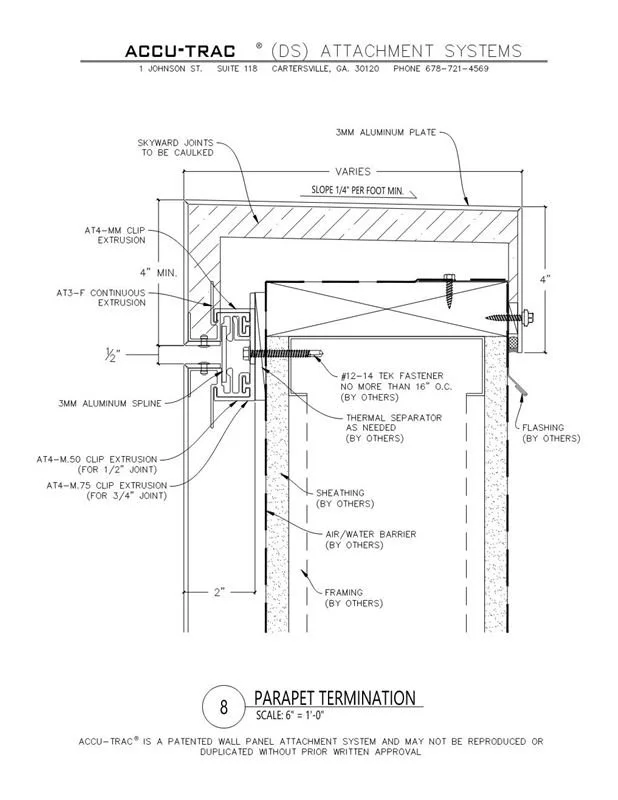

Drawings

Test Documents
